LIS100
Label Inspection System
Online print quality inspection tool
For Printing & Packaging, Pharma, shipping & security labels
Overview

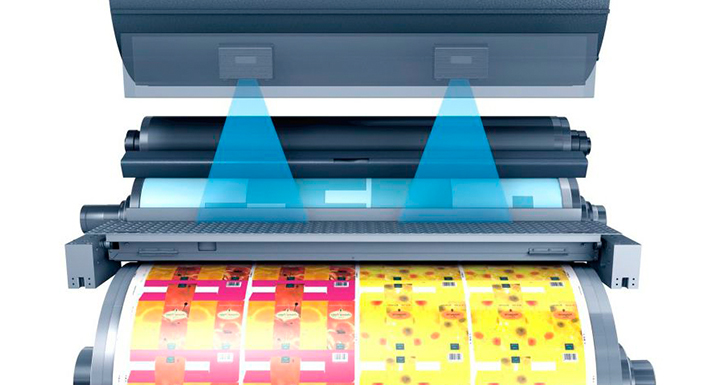

LIS100 is a camera-based inspection tool that capture, process and analyse each pixels of the real time images of the label. A fully automated 100 percent inspection & defect classification enable the users with implementation of a zero-defect strategy at high speed production and throughput.
Eliminate Defects
A continuous stream of real time information –especially failure data allows the operator to isolate the causes of Label imperfections. LIS100’s rejection mechanism automatically removes defective products off from the production line before they reach to your customers or fail in the field.
Quality Assurance
LIS100 provides immediate results and reports according to a configurable classification scale. It captures images of your Product and save the images with defects to disk and allow you to print them out to include in your quality report both internally and to your customers.
Features
- Easy to integrate with existing lines
- One touch teaching method
- GMP compliant architecture for good accessibility; easy maintenance and cleaning
- Various sized Labels are inspected on the same line
- Speed Supports up to 150 meter per minute
- Recipe driven & multiple user access level

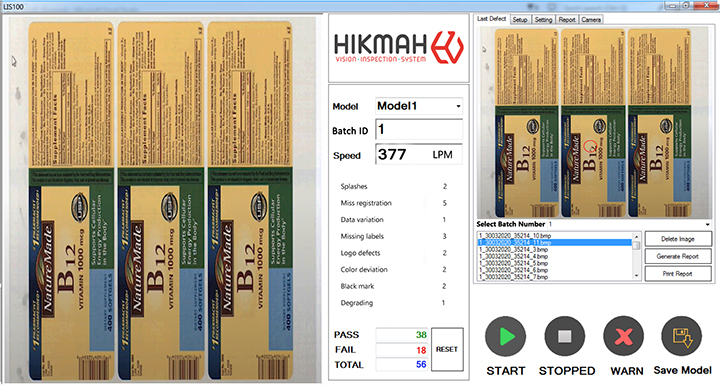

- User friendly GUI & Operation
- Easy teaching method and on the fly parameter adjustment
- Alerts operator and production machinery if any defects found
- Records any defects for QA records & operator verification
- Online alarm activation controlled by system
- Customised add on option to read Barcode/2D code
- Budget-friendly solution for a challenging specification
Play Video
Specifications
Area of Application:
Print & Pack, Pharma, shipping & security labelling
Type of Inspection:

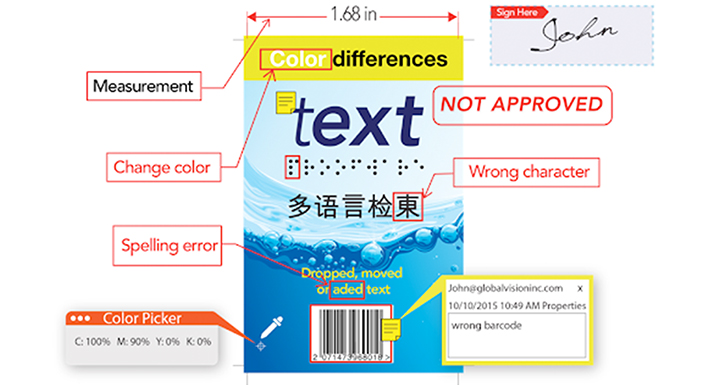

Splashes, Mis registration, Variable data, Missing labels, Logo defects, Printing quality inspection & Inline color deviation
Inspection Speed:
150 meter per min (Higher speed may be available depending on application)
Minimum Defect Size:
0.03 mm | 0.001181”
Display:
Desktop Monitor/Industrial embedded HMI
Controller:
Desktop PC’s/Industrial embedded single board computer
Camera Configuration:
1 Camera – Top view coverage
*more cameras can be configured as per application & product dimension
Image Processing:
All images from all cameras are read, enhanced and analysed, resulting in 100% product coverage along product dimensions at the maximum line speeds
Operating System:
Windows® 10
Warranty:
12 months parts and labour
Power Supply:
230V or 110V, 50/60Hz as per requirement
